FAQs

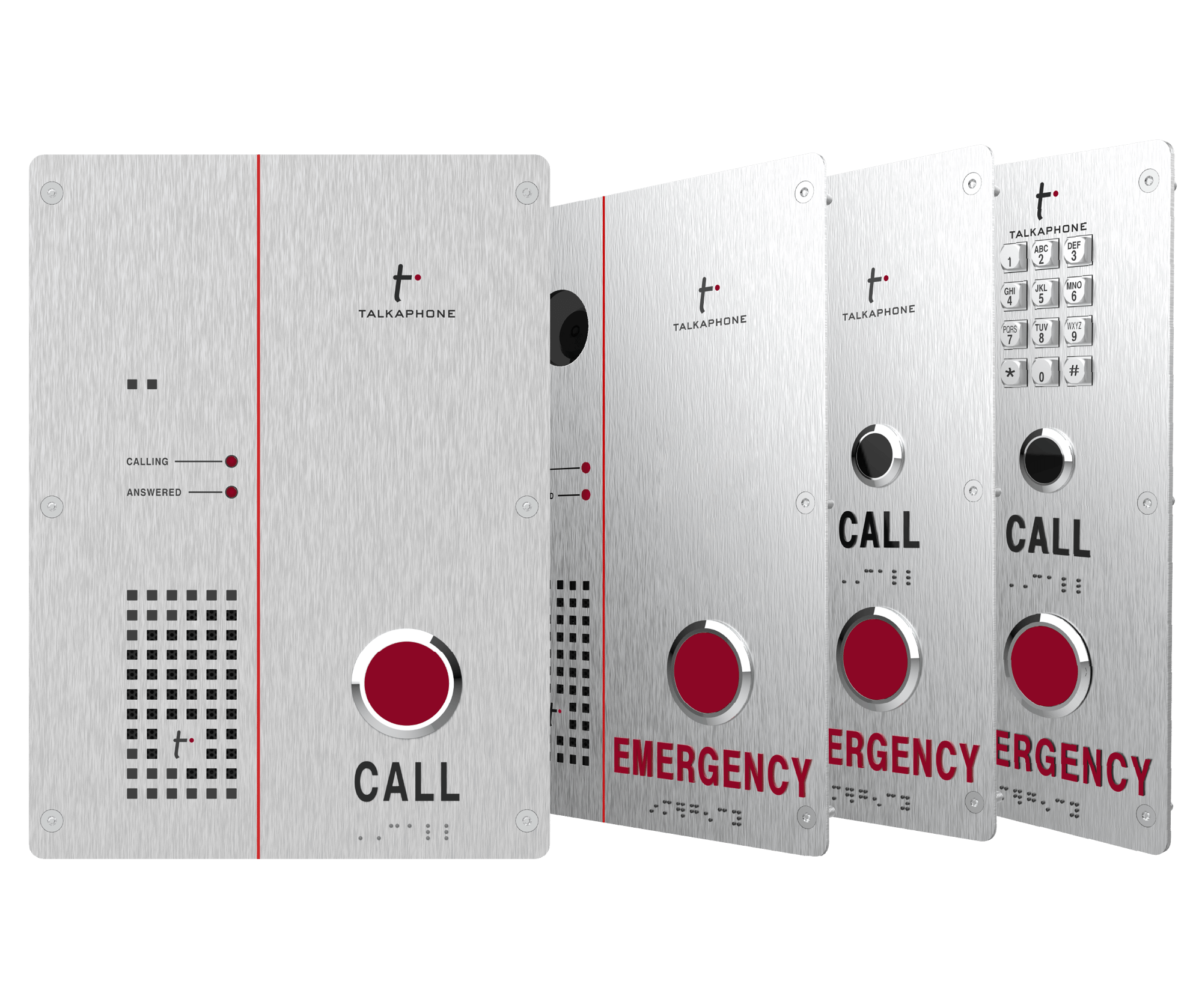

ETP-520 Series Call Stations
1. If you know the Master Access code for the ETP-520 series call station, you should be able to default the device by calling into the device and entering the Master Access Code *31*12345678*, and then the Factory reset command 99#99
2. If you do not know the Master Access code for the ETP-520 series call station but have physical access to the device, you can hold the small white oval button in the center of the PCB as you until the device beeps once for, This bypasses the master access code, so that you can default the device including the Master Access code if not known, and then the Factory reset command 99#99.
When programming the ETP-520 series call stations you will need to add 2#67, to disable the requirement of entering the guard access code to control the relays.
Yes. All memory is non-volatile and does not require a back-up battery.
All ETP-520 series Emergency Phones have a green wire. Connect this wire to earth ground.
We recommend grounding the Tower or other metal enclosure that houses your Emergency Phone. This can be done with a 10 foot grounding rod driven in the ground at each location. Make sure the grounding wire that connects the tower to the rod is heavy gauge like #6 and has no sharp bends.
We recommend placing a gas discharge type phone line surge suppresser at each end of every phone line. This means one suppresser at each emergency phone and one suppresser where that phone line enters the building.
The ground rods are the ideal location to connect the ground lead of a surge suppresser. The surge suppressers must have a ground connection. Use a heavy gauge wire like #6 and avoid sharp bends in the wire. The surge suppressers that will go at the entry point into the building need to be grounded to the best earth ground you can find near that entry point.
Make sure the phone line is working correctly, and that the call station is connected correctly.
If the phone is on a autodial/Ringdown/PLAR line check that it is programmed properly (see https://support.talkaphone.com/portal/en/kb/articles/etp-52).

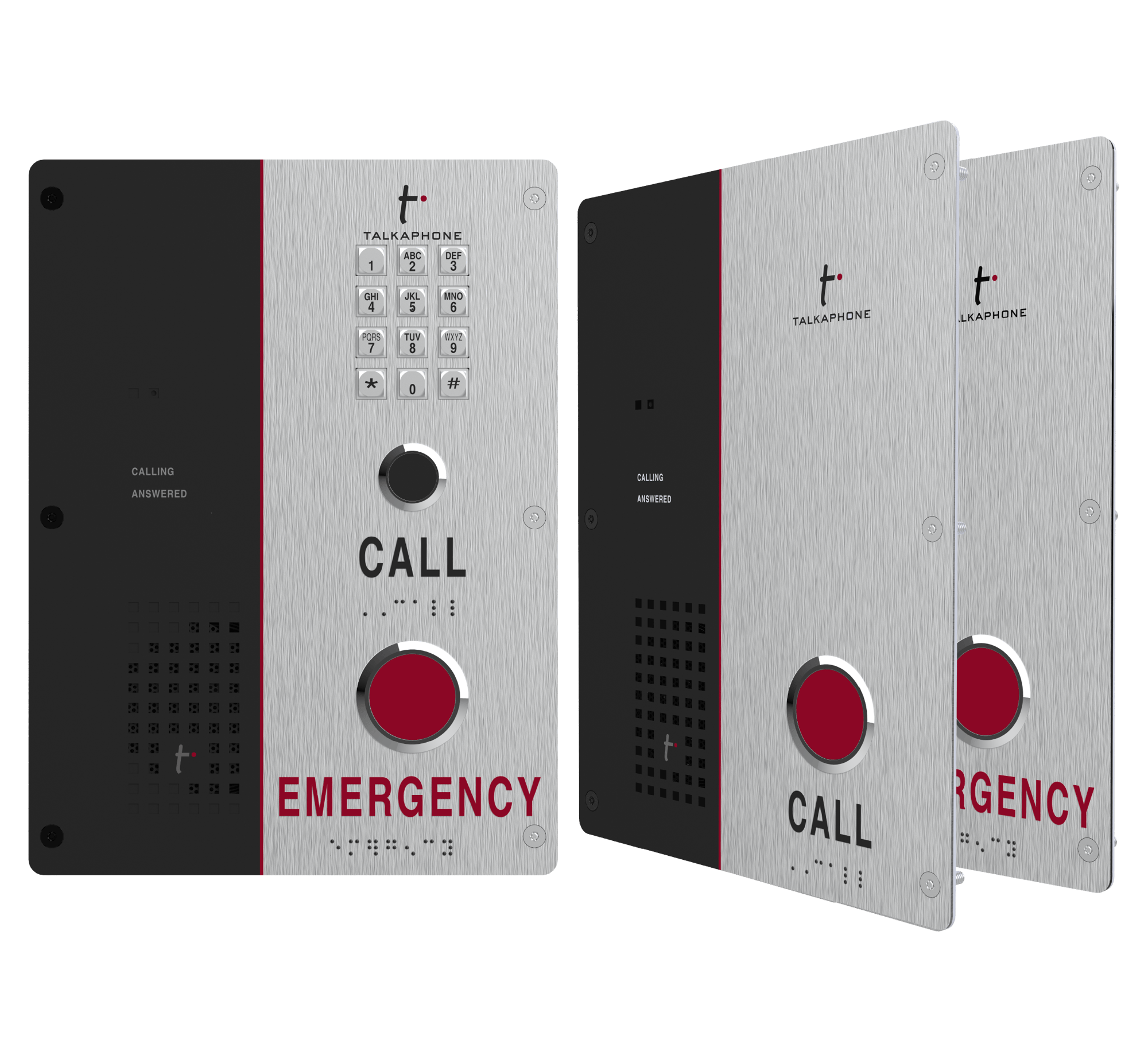

VOIP-500 & VOIP-600 Series Call Stations
The network port on the right hand side, labeled RJ45 PoE WAN is the primary port and must be connected.
The secondary port RJ45 LAN works like a small switch port passing data, and can be used to share the connection or for configuration
With the device completely powered on, locate the small blue button in the upper left of the circuit board, hold for about 10 seconds. The device will reboot and load to the factory defaults.
IP address 192.168.1.10
Username: admin
Password: admin@123

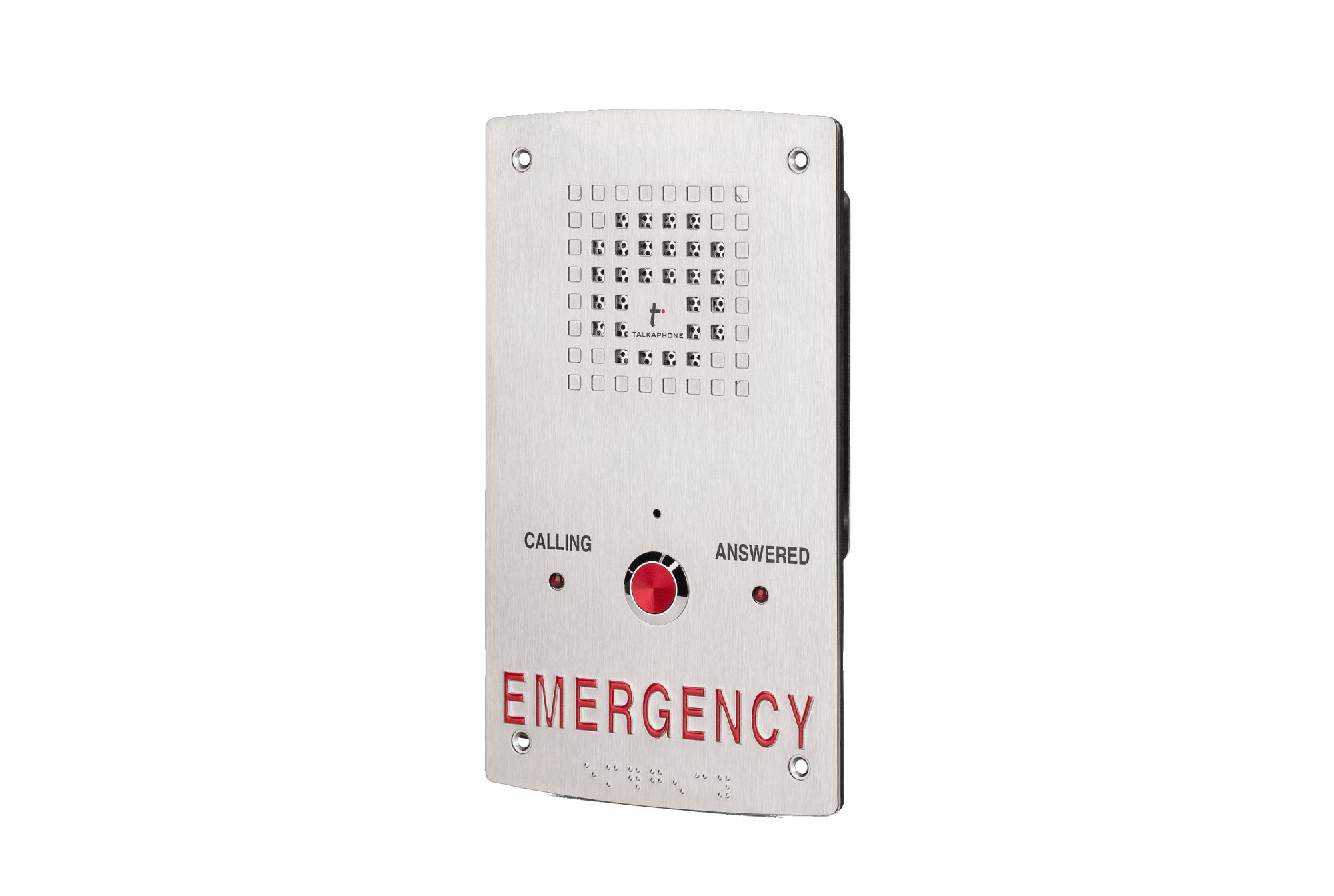

ETP-100 & ETP-400 Series Call Stations
If guard phone on a PBX that does not produce the necessary tones. Then try calling and activating the device from a standard phone line. Make sure the auxiliary devices are properly installed (see Hardware Installation, page 4 of the Emergency Phone Manual). You must press * then *4** before pressing *25* or *28* to activate your device (or, to disable this feature. see Security Codes, page 8 of the Emergency Phone Manual) . Or you may have to enter * before pressing *25*
If you have programmed *78* into your phone, each subsequent time you call, the speaker and microphone on the unit will automatically be active. In order to enter programming mode (speaker and mic. will still be active, but quieter), hold down the * button for at least a second. You should hear one beep. Then enter your access code and begin programming as usual. (For more information see Speaker and Microphone Codes, page 9 of Emergency Phone Manual.)
Yes. For this reason it is imperative that you use some method to provide back-up power for your EC-8. Talkaphone offers a Model ETP-UPS for this purpose. There are many other UPS's commercially available. If you are going to use an alternative UPS to Talkaphone Model ETP-UPS, be sure that it has a wave form type of stepped approximation to a sine wave.
We have no way of programming an alternate Guard Access Code if you have lost your Master Access Code. For this reason, you may not wish to change the default Master Access Code unless you absolutely must. All codes should be written down and stored in a secure location.
Your phone doesn't have the Intelli-Voice option (model number doesn't end in "V").
Yes. All memory is non-volatile and does not require a back-up battery.
We recommend grounding the Tower or other metal enclosure that houses your Emergency Phone. This can be done with a 10 foot grounding rod driven in the ground at each location. Make sure the grounding wire that connects the tower to the rod is heavy gauge like #6 and has no sharp bends.
We recommend placing a gas discharge type phone line surge suppresser at each end of every phone line. This means one suppresser at each emergency phone and one suppresser where that phone line enters the building.
The ground rods are the ideal location to connect the ground lead of a surge suppresser. The surge suppressers must have a ground connection. Use a heavy gauge wire like #6 and avoid sharp bends in the wire. The surge suppressers that will go at the entry point into the building need to be grounded to the best earth ground you can find near that entry point.
Although existing units in the field cannot be upgraded with the "V" option, complete electronics modules (without faceplates) for every model are available with this feature. Call your distributor or Talkaphone's sales department for more information about purchasing a new unit with the "V" option, or replacing the electronics of your existing unit.
There are two potential issues
1. There isn't enough power on the line (see Technical Requirements, page 3 of the Emergency Phone Manual).
2. Many of todays converted analog phone lines may have difficulty understand the DTMF tones dialed by the ETP-400 or ETP-100. Replacing the call station with the current equivalent Model should resolve this issue.
1. The phone is calling a local extension off a PBX and the phone system is "answering" the call before transferring it. Try programming the phone to get an outside line and call directly. For more information, consult the party responsible for maintaining your phone system. The phone is programmed to call a number that then routes the call to another number. Try programming the phone to dial a number directly.
2. If the phone is on a converted line such as a cellular to POTS adapter, this may happen as the signal passes from the local device to the cellular signal
The phone is transmitting its unique ID. If you are using Talk-A-Lert to identify the location of incoming calls, these tones are required. If not, the code for disabling this feature is *49*.
Is your phone on a PBX but not programmed properly (see PBX/Configuration Codes, page 11 of the Emergency Phone Manual). Is your phone on a PBX that doesn't provide a) a hang-up pulse and b) produces a re-order tone less than 30 seconds after hang-up. If so consult the party responsible for maintaining your phone system.
Check to be sure the phone wire is properly connected. Make sure there is enough power on the line (see Technical Requirements, page 3 of the Emergency Phone Manual). Your unit may have been struck by lightning or another very high voltage source. Contact Talkaphone's Service Department.
If the phone is on a PBX check that it is programmed properly (see https://support.talkaphone.com/portal/en/kb/articles/not-dialing-on-cisco-vg-configured-for-plar). Check to make sure your PBX "ringdown" line meets the power requirements (see Technical Requirements, page 3 of the Emergency Phone Manual). Is there some other device on the line (e.g. auto-dialer, fax machine, etc.) Is the phone programmed to play a message upon answering but no message has been recorded. The guard hears 10 seconds of silence before 2-way communication. The code for disabling this message is *70* (see Intelli-Voice Option Codes, page 9 of the Emergency Phone Manual).
VOIP-220 & VOIP-221 Series Call Stations

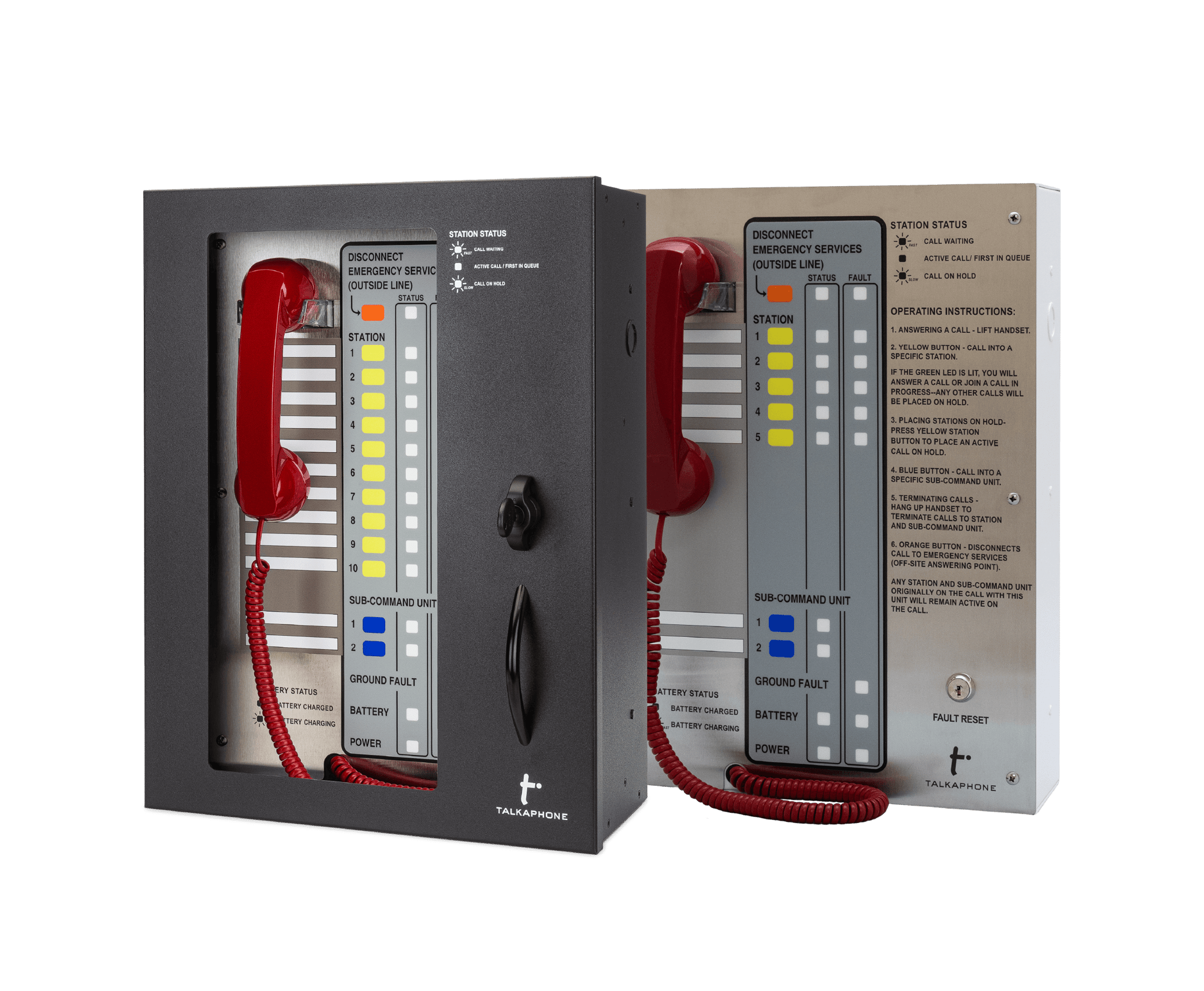

AOR-5 & AOR-10 Series Call Stations
Aside from wiring issues, there are two other possible causes for this.
1. The stations have not been ocrrectly identified using the config button.
2. The AOR-5/10 is on an older firmware 1.7 or earlier, and uses *4x* to access stations for programming.
The gray ribbon cable connected to the upper right of the control board is upside down. The red wire should be at the top next to the label for pin 1 that is silkscreen on the PCB.
The phone number for the red hadset is 5. If you do not program the call station to dial the station status port will illuminate, but the handset will not ring, and the call station will actually be calling the command unit.
EC-8
Are you using a touch-tone phone on a PBX that is not giving the EC-8 the appropriate tones. Or someone has changed the Access Code. You can reset all codes to factory default by entering *30*14725836* (see FAQ #4).
Purchase a UPS for your EC-8! The EC-8 supplies power to all connected emergency phones. Therefore, if the EC-8 loses power, the emergency phones will cease functioning. Talkaphone offers a model ETP-UPS. You may also find a UPS at your local electronics store. (For UPS requirements, see FAQ #7.)
If you are not using twisted, shielded wirethen fluorescent lights, elevator machinery and many other devices can produce noise on your wires if they are not properly twisted and shielded. (See separate FAQ for wiring requirements.)
Make sure the power supply is properly connected (check the power LED) and the phone wires are properly connected. Is there enough power on the line (see Technical Requirements, page 3 of the EC-8 Manual). You may have accidentally plugged a PBX line or phone company line into the Local port. If so, contact Talkaphone technical support. Your unit may have been struck by lightning or another very high voltage source. Contact Talkaphone's Service Department.
The Emergency Phone was not programmed to automatically go "live" after being called. It is in programming mode. You can activate it for a single call or for all future calls by entering your guard code (*4**) followed by either *5* for a single call or *78* for all future calls. (See Emergency Phone Manual, page 9 for more information.)
The Emergency/Information phone that called was not programmed with a phone number.
You must enter a phone number (see Primary and Secondary Phone Number Codes, page 8 of Emergency Phone Manual) even though your Talkaphone unit is not using this number to connect to the local phone. We recommend using 7 digits so that the person originating the call will hear the familiar sound of a 7 digit phone number.
Yes. All memory is non-volatile and does not require a back-up battery.
Each EC-8 Consolidator requires its own phone line or local phone. (Exception: A 2-line local phone, connected to the LOCAL port will allow 2 EC-8’s to be connected in parallel.)
We strongly recommend twisted, shielded pairs with the shield connected to earth ground only at the EC-8 end. The resistance on the line is not to exceed 25 ohms.
Although the LED’s cannot be made remote, Emergency/Information phones can be purchased with the "V" option which allows a location identifying message to be recorded into the phone. This message is then played as soon as the call is answered. This ensures that no matter what phone answers the call (local or remote) the location will be immediately announced. Another option is to purchase an EB-100 or EB-200 Base Station. These devices will display a 6 digit code (e.g. 122806 for 1228 Main St. 6th floor) as soon as the call has been answered.
If you have forgotten your access code, you may reset the programming on your EC-8 to factory default by entering *30*14725836*. Note: you will NOT have to reprogram your individual Emergency/Information Phones.
ETP-TAL
In the poller preferences, under the Administration menu, reduce the Minimum Result Length to 8. Call the phones that are having problems. Do they answer with a series of tones? If not, there is problem with either the emergency phone, or the connection. Do you have the Verify Complete ID Match box checked for these phones? If so, uncheck it and press Save.
If your base station is connected to the headset of the phone receiving incoming calls, try turning the volume up to make sure the base station hears the alert tones.
Check the Date Range in the Poll Results window. Change it to include today's date, then press the refresh button. Check the Poll Run Default Display Date Offsets in the General Preferences. Each time you restart Talk-A-Lert it resets the date range of the Poll Results window. If you don't restart, eventually the date ranges will need to be changed.
You may have a problem with your COM port. Make sure you have set the port in the poller preferences the same as the COM port in which you have installed your modem. Also make sure you don't have any other devices using the COM ports you have chosen. Even if you have removed another device, the COM port may still be set for the old device. Make sure your phone line is good. Plug a phone into the Phone jack of the modem and try to call the number you have entered in the Phone Number field of one of the phones. Make sure the Poller is on. Restart the programs after entering the phone data.
As a security measure, there is no back door entry into the program. Call Talkaphone Co. and ask for a Talk-A-Lert Specialist.
- If you see a file called "Talert.log", delete it.
- If your database file has any name other than "talert.db", change it to "talert.db"
