Model No: AOR-24
- Accommodates up to 24 Area of Rescue stations
- AOR stations are powered by the command unit
- Command unit can route an emergency phone call to a 911 center or other designated location
Area of Refuge/Rescue (AOR) Command Unit (model AOR-24) is part of Talkaphone’s total AOR solution that accommodates up to 24 ADA-compliant Area of Refuge/Rescue stations.

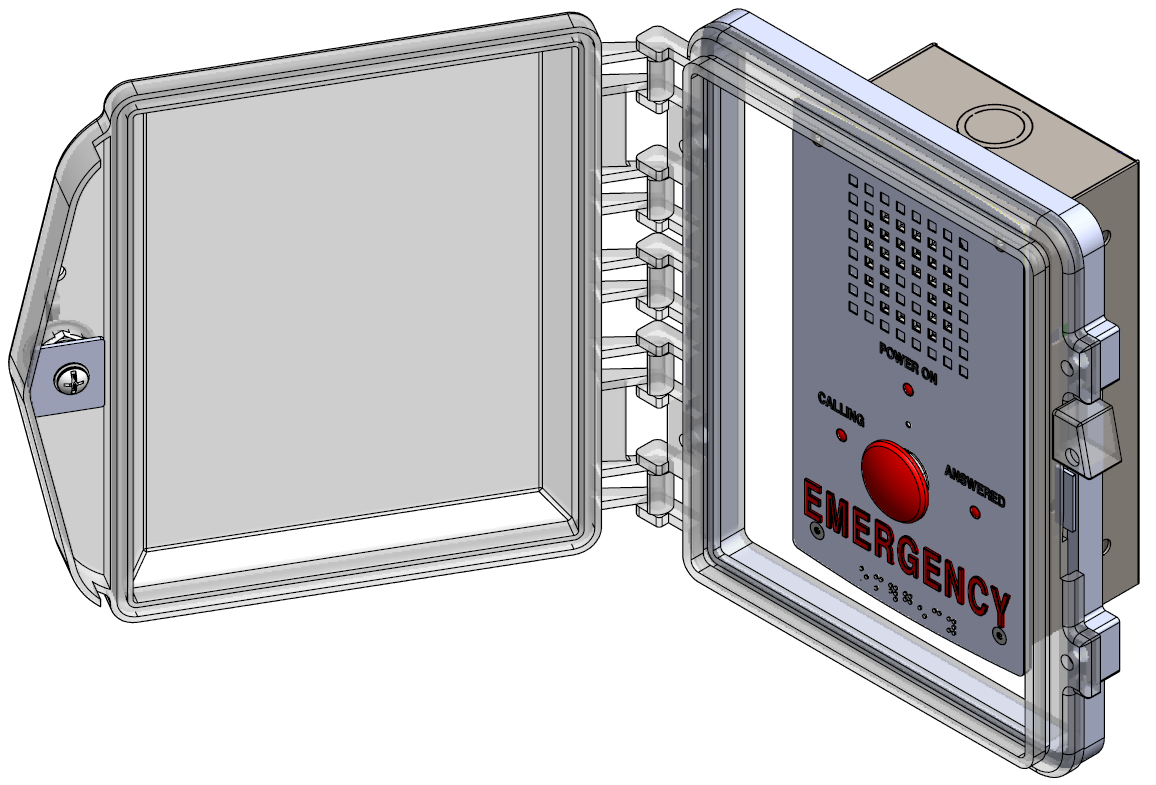

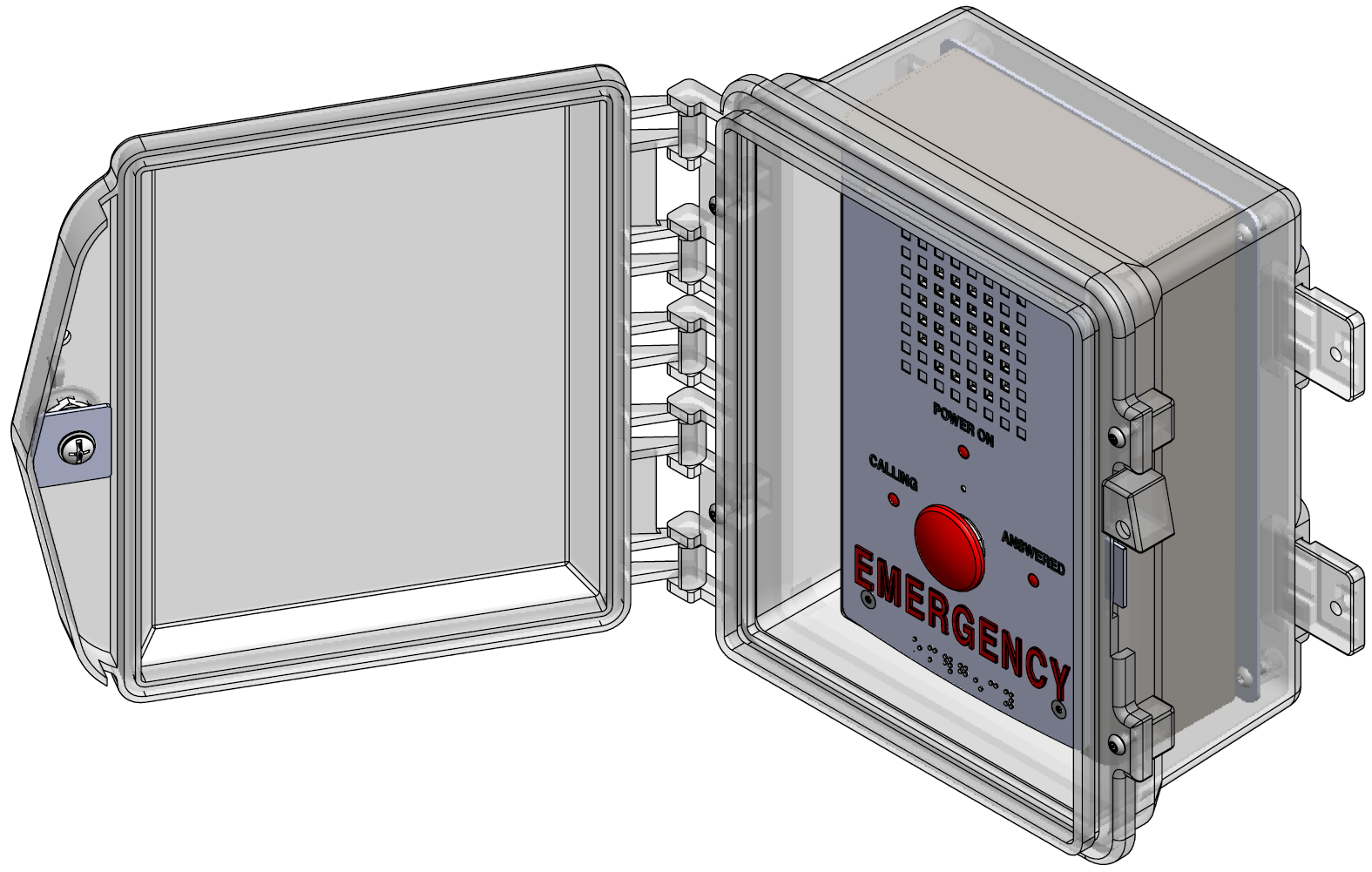

It consists of a command unit, a selected number of AOR stations (flush or surface mounted), and AOR signage to accommodate the selected number of AOR stations. The ADA-compliant AOR stations are powered by the command unit using one twisted-shielded pair cable from each AOR station to the command unit.
When the user initiates an emergency call from an AOR station, a tone is heard to confirm the call has been placed and a LED light indicates the call has been received. At the same time, the command unit’s strobe starts flashing and the siren is initiated. If there are other callers on the line, the command unit receives and queues the call. Each queued emergency call is displayed as a flashing red light on the command unit, which can be labeled for easy location identification. AOR stations can also be programmed to play a location identifier message when a call is answered. An active call is displayed as solid red. The command unit’s siren deactivates when the call is answered by local fire personnel. The strobe will deactivate only when all emergency lines have been cleared. Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
The command unit can route an emergency phone call to a 911 center or other designated location via a Telco line if no one is available to answer the call after an installer programmed amount of time. An uninterruptible power supply (UPS) is included to provide more than 4 hours backup of the complete communications system.
- Fully compliant with the IBC §1007, ADAAG §7, ICC A117.1, and NFPA 72 §24.5.3
- Accommodates up to 24 ADA compliant Area of Rescue Stations
- Stations are powered by Command Unit
- LEDs on Command Unit indicate calling Station and line status
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
