VOIP-600 Series IP Call Station with

VOIP-600EI

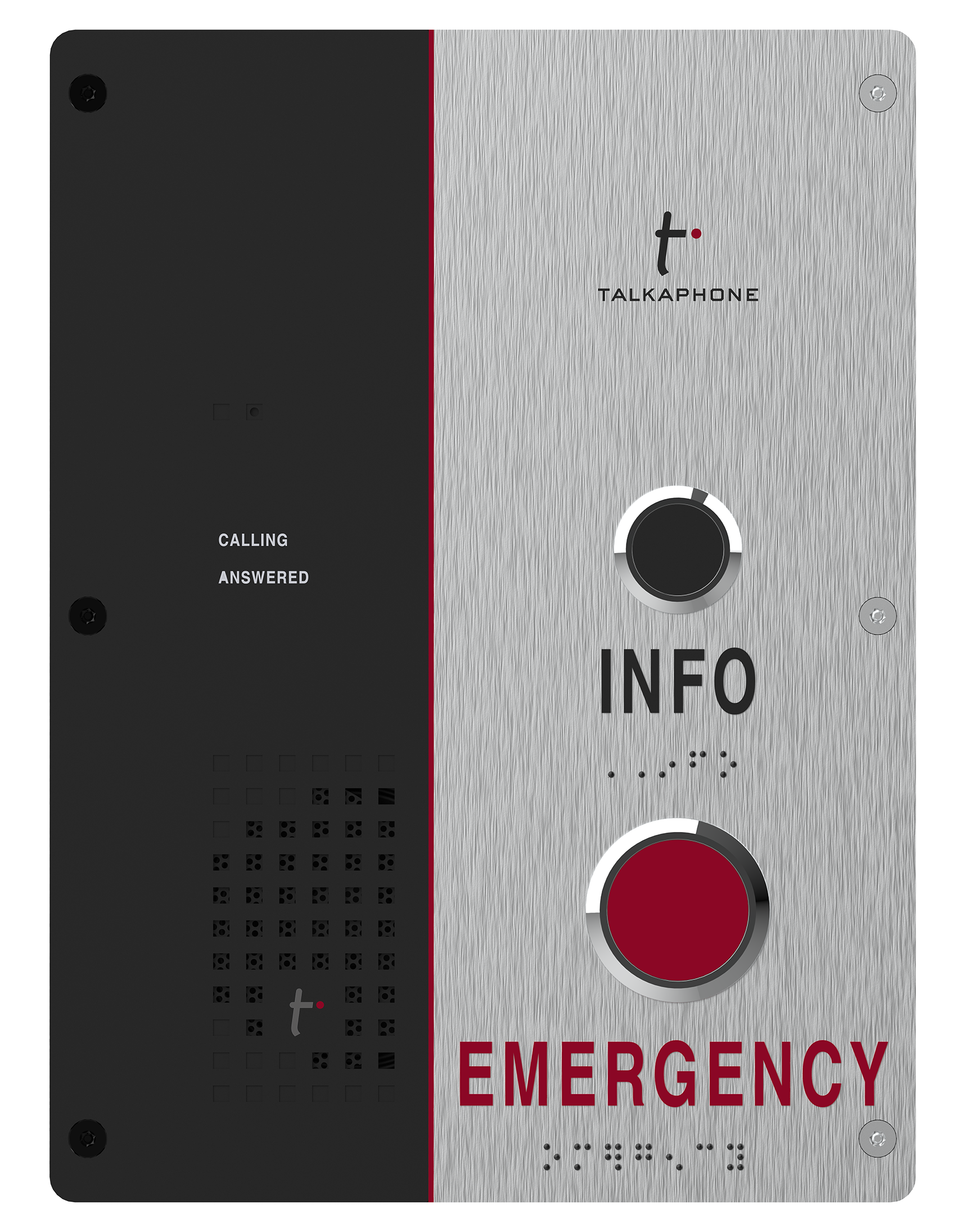

VOIP-600 Series IP Call Station with "EMERGENCY" Button/Signage and "INFO" Button/Signage

  • Clean and simple interface
  • Backlit call progress signage for the hearing impaired (labeled "CALLING" and "ANSWERED")
  • Dual-button Call Station with ADA-compliant "EMERGENCY" and "INFO" signage (raised letter and braille)
  • Each button can be programmed to auto-dial its own phone number list with up to six (6) phone numbers: if first number doesn't answer or is busy, dials next number
  • Unit can be paged remotely by placing a call into the unit or as a Singlewire InformaCast IP Speaker
  • Exceptional sound clarity during conversation (up to over 90dB) and paging (up to over 100dB)
  • Scheduled self-diagnostics
  • Powered by 12V DC, 24V AC/DC, or Power over Ethernet (PoE, 802.3af)
  • Two (2) LED indicators for hearing impaired (labeled "CALLING" and "ANSWERED")
  • Supports standard SIP protocol (RFC 3261)

VOIP-600 Series IP Call Stations features a clean and simple interface with backlit call progress signage for the hearing impaired.

The VOIP-600 outdoor-rated, ADA-compliant hands-free Voice over IP (VoIP) Call Stations go beyond emergency communications with intelligible audio paging, silent monitoring, and advanced self-diagnostic features.



Talkaphone's VOIP-500 and VOIP-600 Series IP Call Stations have tested compatible with Cisco UCM 7.1 and UCM 8.6. The Cisco Compatible logo signifies that Talkaphone's product has undergone interoperability testing by Talkaphone together with Cisco and a third-party test house based on testing criteria set by Cisco. Talkaphone is solely responsible for the support and warranty of its product. Cisco makes no warranties, express or implied, with respect to Talkaphone's product or its inter-operation with the listed Cisco product(s) and disclaims any implied warranties of merchantability, fitness for a particular use, or against infringement.

Talkaphone's VOIP-500 and VOIP 600 Series IP Call Stations directly support the Singlewire InformaCast IP Speaker Protocol.  Singlewire InformaCast Advanced is a full-featured emergency notification solution that enables people to reach Cisco IP phones, speakers, cell phones (with InformaCast Mobile), and other devices with text and live, ad-hoc, pre-recorded, or text-to-speech audio.

This integration and direct support offers organizations the opportunity to leverage the SIP-compliant VOIP-500 and VOIP-600 Series IP Call Stations as endpoints for triggering and receiving InformaCast broadcasts. In addition to being capable of receiving live, ad-hoc, pre-recorded, or text-to-speech audio, the VOIP-500 and VOIP-600 Series IP Call Stations button can be configured to place a call to a preset extension phone number. Singlewire InformaCast Advanced can be configured to monitor that extension phone number utilizing the CallAware module and, as a result, trigger a broadcast.



Features and Benefits

  • Clean and simple interface with backlit call progress signage for the hearing impaired (labeled "CALLING" and "ANSWERED")
  • Dual-button Call Station with ADA-compliant "EMERGENCY" and "INFO" signage (raised letter and braille)
  • Each button can be programmed to auto-dial its own phone number list with up to six (6) phone numbers: if first number doesn't answer or is busy, dials next number
  • Exceptional sound clarity during conversation (over 90dB, configurable) and paging (over 100dB, configurable)
  • Unit can be paged remotely by placing a call into the unit or as a Singlewire InformaCast IP Speaker
  • Vandal resistant 316 marine grade stainless steel faceplate
  • IP66 water resistant construction
  • Stainless steel metal button designed for long lasting usage and weather exposure
  • Ethernet connectivity and full IP compatibility with existing routers and LAN infrastructure
  • Additional Layer 2 switch Ethernet port to connect other devices (e.g., IP video cameras)
  • Supports standard SIP protocol (RFC 3261)
  • Powered by 12V DC, 24V AC/DC, or Power over Ethernet (PoE, 802.3af)
  • Auto-answer allows an attendant to monitor and initiate calls with the unit
  • Ability to automatically identify to the attendant the location of calling unit via a pre-recorded message
  • Auxiliary inputs and outputs to integrate with CCTV, LED Blue Light, Access Control, and other third-party devices
  • Configuration and firmware upgrades through Web GUI
  • Scheduled self-diagnostic testing of built-in button and hands-free microphone/speaker
